Running INFOG and GDR on one million cells#

Load basic settings#

[1]:

import numpy as np
import pandas as pd
import scanpy as sc
sc.set_figure_params(dpi=80,dpi_save=300, color_map='viridis',facecolor='white')
from matplotlib import rcParams
# To modify the default figure size, use rcParams.
rcParams['figure.figsize'] = 4, 4
rcParams['font.sans-serif'] = "Arial"
rcParams['font.family'] = "Arial"
sc.settings.verbosity = 3
sc.logging.print_header()

/tmp/ipykernel_884065/1353975569.py:11: RuntimeWarning: Failed to import dependencies for application/vnd.jupyter.widget-view+json representation. (ModuleNotFoundError: No module named 'ipywidgets')
  sc.logging.print_header()

[1]:
ComponentInfo
Python3.10.18 (main, Jun 5 2025, 13:14:17) [GCC 11.2.0]
OSLinux-5.14.0-611.11.1.el9_7.x86_64-x86_64-with-glibc2.34
CPU96 logical CPU cores, x86_64
GPUNo GPU found
Updated2025-12-16 04:14
Dependencies
DependencyVersion
cycler0.12.1
matplotlib-inline0.1.7
jedi0.19.2
natsort8.4.0
ipython8.37.0
pillow11.2.1
executing2.2.0
leidenalg0.10.2
llvmlite0.44.0
pytz2025.2
joblib1.5.1
prompt_toolkit3.0.51
decorator5.2.1
stack-data0.6.3
wcwidth0.2.13
igraph0.11.9
parso0.8.4
debugpy1.8.14
python-dateutil2.9.0.post0
six1.17.0
texttable1.7.0
psutil7.0.0
asttokens3.0.0
Cython3.1.4
h5py3.14.0
numba0.61.2
pure_eval0.2.3
kiwisolver1.4.8
setuptools78.1.1
tornado6.5.1
Copyable Markdown
| Dependency        | Version     |
| ----------------- | ----------- |
| cycler            | 0.12.1      |
| matplotlib-inline | 0.1.7       |
| jedi              | 0.19.2      |
| natsort           | 8.4.0       |
| ipython           | 8.37.0      |
| pillow            | 11.2.1      |
| executing         | 2.2.0       |
| leidenalg         | 0.10.2      |
| llvmlite          | 0.44.0      |
| pytz              | 2025.2      |
| joblib            | 1.5.1       |
| prompt_toolkit    | 3.0.51      |
| decorator         | 5.2.1       |
| stack-data        | 0.6.3       |
| wcwidth           | 0.2.13      |
| igraph            | 0.11.9      |
| parso             | 0.8.4       |
| debugpy           | 1.8.14      |
| python-dateutil   | 2.9.0.post0 |
| six               | 1.17.0      |
| texttable         | 1.7.0       |
| psutil            | 7.0.0       |
| asttokens         | 3.0.0       |
| Cython            | 3.1.4       |
| h5py              | 3.14.0      |
| numba             | 0.61.2      |
| pure_eval         | 0.2.3       |
| kiwisolver        | 1.4.8       |
| setuptools        | 78.1.1      |
| tornado           | 6.5.1       |

| Component | Info                                                     |
| --------- | -------------------------------------------------------- |
| Python    | 3.10.18 (main, Jun  5 2025, 13:14:17) [GCC 11.2.0]       |
| OS        | Linux-5.14.0-611.11.1.el9_7.x86_64-x86_64-with-glibc2.34 |
| CPU       | 96 logical CPU cores, x86_64                             |
| GPU       | No GPU found                                             |
| Updated   | 2025-12-16 04:14                                         |

Setting paths#

[4]:

save_dir='/n/scratch/users/m/mid166/Result/single-cell/Methods/DataProcessing/AsianImmuneDiversityAtlasPhase1v2'
sc.settings.figdir = save_dir
prefix='AsianImmuneDiversityAtlasPhase1v2'
import os
if not os.path.exists(save_dir):
    os.makedirs(save_dir)

sc.set_figure_params(dpi=80,dpi_save=300, color_map='viridis',facecolor='white')
rcParams['figure.figsize'] = 4, 4

Load the data#

The data is from Asian diversity in human immune cells Kock, Kian Hong et al. Cell, Volume 188, Issue 8, 2288 - 2306.e24.

cd /n/scratch/users/m/mid166/Result/single-cell/Methods/DataProcessing/AsianImmuneDiversityAtlasPhase1v2
wget https://datasets.cellxgene.cziscience.com/9deda9ad-6a71-401e-b909-5263919d85f9.h5ad
mv 9deda9ad-6a71-401e-b909-5263919d85f9.h5ad AsianImmuneDiversityAtlasPhase1v2.h5ad

[5]:

adata=sc.read('/n/scratch/users/m/mid166/Result/single-cell/Methods/DataProcessing/AsianImmuneDiversityAtlasPhase1v2/AsianImmuneDiversityAtlasPhase1v2.h5ad')

[6]:

adata

[6]:

AnnData object with n_obs × n_vars = 1265624 × 35477
    obs: 'reference_genome', 'gene_annotation_version', 'alignment_software', 'intronic_reads_counted', 'library_id', 'assay_ontology_term_id', 'sequenced_fragment', 'cell_number_loaded', 'institute', 'is_primary_data', 'cell_type_ontology_term_id', 'author_cell_type', 'sample_id', 'sample_preservation_method', 'tissue_ontology_term_id', 'development_stage_ontology_term_id', 'sample_collection_method', 'donor_BMI_at_collection', 'tissue_type', 'suspension_derivation_process', 'suspension_enriched_cell_types', 'cell_viability_percentage', 'suspension_uuid', 'suspension_type', 'donor_id', 'self_reported_ethnicity_ontology_term_id', 'donor_living_at_sample_collection', 'disease_ontology_term_id', 'sex_ontology_term_id', 'nCount_RNA', 'nFeature_RNA', 'pMito', 'NODG', 'nUMI', 'Country', 'Annotation_Level1', 'Annotation_Level2', 'Annotation_Level3', 'Annotation_Level4', 'Smoking Status', 'cell_type', 'assay', 'disease', 'sex', 'tissue', 'self_reported_ethnicity', 'development_stage', 'observation_joinid'
    var: 'feature_is_filtered', 'feature_name', 'feature_reference', 'feature_biotype', 'feature_length', 'feature_type'
    uns: 'citation', 'default_embedding', 'organism', 'organism_ontology_term_id', 'schema_reference', 'schema_version', 'title'
    obsm: 'X_umap'

Change the adata.var to gene symbols#

[10]:

adata.var.head()

[10]:
feature_is_filtered feature_name feature_reference feature_biotype feature_length feature_type
ENSG00000000003 False TSPAN6 NCBITaxon:9606 gene 2396 protein_coding
ENSG00000000005 False TNMD NCBITaxon:9606 gene 873 protein_coding
ENSG00000000419 False DPM1 NCBITaxon:9606 gene 1262 protein_coding
ENSG00000000457 False SCYL3 NCBITaxon:9606 gene 2916 protein_coding
ENSG00000000460 False FIRRM NCBITaxon:9606 gene 2661 protein_coding
[12]:

adata.var['Ensemble_ID']=adata.var_names.copy()

[13]:

adata.var_names=adata.var['feature_name'].values.astype(str).copy()

[14]:

adata.var.head()

[14]:
feature_is_filtered feature_name feature_reference feature_biotype feature_length feature_type Ensemble_ID
TSPAN6 False TSPAN6 NCBITaxon:9606 gene 2396 protein_coding ENSG00000000003
TNMD False TNMD NCBITaxon:9606 gene 873 protein_coding ENSG00000000005
DPM1 False DPM1 NCBITaxon:9606 gene 1262 protein_coding ENSG00000000419
SCYL3 False SCYL3 NCBITaxon:9606 gene 2916 protein_coding ENSG00000000457
FIRRM False FIRRM NCBITaxon:9606 gene 2661 protein_coding ENSG00000000460
[ ]:

adata.var.tail(30)
feature_is_filtered feature_name feature_reference feature_biotype feature_length feature_type Ensemble_ID
ENSG00000288096 False ENSG00000288096 NCBITaxon:9606 gene 2075 lncRNA ENSG00000288096
ENSG00000288097 False ENSG00000288097 NCBITaxon:9606 gene 2264 lncRNA ENSG00000288097
ENSG00000288098 False ENSG00000288098 NCBITaxon:9606 gene 653 lncRNA ENSG00000288098
ENSG00000288099 False ENSG00000288099 NCBITaxon:9606 gene 611 lncRNA ENSG00000288099
ENSG00000288100 False ENSG00000288100 NCBITaxon:9606 gene 1676 lncRNA ENSG00000288100
ENSG00000288102 False ENSG00000288102 NCBITaxon:9606 gene 872 lncRNA ENSG00000288102
ENSG00000288103 False ENSG00000288103 NCBITaxon:9606 gene 795 lncRNA ENSG00000288103
ENSG00000288104 False ENSG00000288104 NCBITaxon:9606 gene 2196 lncRNA ENSG00000288104
ENSG00000288105 False ENSG00000288105 NCBITaxon:9606 gene 1131 lncRNA ENSG00000288105
ENSG00000288106 False ENSG00000288106 NCBITaxon:9606 gene 1301 lncRNA ENSG00000288106
ENSG00000288107 False ENSG00000288107 NCBITaxon:9606 gene 2800 lncRNA ENSG00000288107
ENSG00000288108 False ENSG00000288108 NCBITaxon:9606 gene 509 lncRNA ENSG00000288108
ENSG00000288109 False ENSG00000288109 NCBITaxon:9606 gene 669 lncRNA ENSG00000288109
ENSG00000288110 False ENSG00000288110 NCBITaxon:9606 gene 2417 lncRNA ENSG00000288110
ENSG00000288156 False ENSG00000288156 NCBITaxon:9606 gene 2609 lncRNA ENSG00000288156
ENSG00000288162 False ENSG00000288162 NCBITaxon:9606 gene 1636 lncRNA ENSG00000288162
ENSG00000288172 False ENSG00000288172 NCBITaxon:9606 gene 1438 lncRNA ENSG00000288172
ENSG00000288187 False ENSG00000288187 NCBITaxon:9606 gene 1408 lncRNA ENSG00000288187
ENSG00000288234 False ENSG00000288234 NCBITaxon:9606 gene 812 lncRNA ENSG00000288234
FAM106C False FAM106C NCBITaxon:9606 gene 1623 lncRNA ENSG00000288235
ENSG00000288245 False ENSG00000288245 NCBITaxon:9606 gene 1317 lncRNA ENSG00000288245
ENSG00000288252 False ENSG00000288252 NCBITaxon:9606 gene 512 lncRNA ENSG00000288252
ENSG00000288253 False ENSG00000288253 NCBITaxon:9606 gene 615 lncRNA ENSG00000288253
ENSG00000288300 False ENSG00000288300 NCBITaxon:9606 gene 1622 lncRNA ENSG00000288300
ENSG00000288302 False ENSG00000288302 NCBITaxon:9606 gene 629 lncRNA ENSG00000288302
ENSG00000288321 False ENSG00000288321 NCBITaxon:9606 gene 478 lncRNA ENSG00000288321
ENSG00000288330 False ENSG00000288330 NCBITaxon:9606 gene 1601 TEC ENSG00000288330
ENSG00000288398 False ENSG00000288398 NCBITaxon:9606 gene 2662 lncRNA ENSG00000288398
ENSG00000288459 False ENSG00000288459 NCBITaxon:9606 gene 944 lncRNA ENSG00000288459
SMIM42 False SMIM42 NCBITaxon:9606 gene 1015 protein_coding ENSG00000288460
[20]:

adata.var_names=[np.str_.split(i, '_ENSG')[0] for i in adata.var_names]

[21]:

adata.var_names_make_unique()

[22]:

adata.var.head()

[22]:
feature_is_filtered feature_name feature_reference feature_biotype feature_length feature_type Ensemble_ID
TSPAN6 False TSPAN6 NCBITaxon:9606 gene 2396 protein_coding ENSG00000000003
TNMD False TNMD NCBITaxon:9606 gene 873 protein_coding ENSG00000000005
DPM1 False DPM1 NCBITaxon:9606 gene 1262 protein_coding ENSG00000000419
SCYL3 False SCYL3 NCBITaxon:9606 gene 2916 protein_coding ENSG00000000457
FIRRM False FIRRM NCBITaxon:9606 gene 2661 protein_coding ENSG00000000460

Set up the raw UMI counts layer#

[15]:

adata.raw.X.data

[15]:

array([1., 1., 1., ..., 2., 1., 1.], shape=(2545339623,), dtype=float32)

[16]:

adata.layers['raw']=adata.raw.X.copy()

[17]:

del adata.raw

[18]:

adata.X.data

[18]:

array([1.21232039, 1.21232039, 1.21232039, ..., 2.99794589, 1.82356588,
       3.96914141], shape=(2544339517,))

[23]:

adata

[23]:

AnnData object with n_obs × n_vars = 1265624 × 35477
    obs: 'reference_genome', 'gene_annotation_version', 'alignment_software', 'intronic_reads_counted', 'library_id', 'assay_ontology_term_id', 'sequenced_fragment', 'cell_number_loaded', 'institute', 'is_primary_data', 'cell_type_ontology_term_id', 'author_cell_type', 'sample_id', 'sample_preservation_method', 'tissue_ontology_term_id', 'development_stage_ontology_term_id', 'sample_collection_method', 'donor_BMI_at_collection', 'tissue_type', 'suspension_derivation_process', 'suspension_enriched_cell_types', 'cell_viability_percentage', 'suspension_uuid', 'suspension_type', 'donor_id', 'self_reported_ethnicity_ontology_term_id', 'donor_living_at_sample_collection', 'disease_ontology_term_id', 'sex_ontology_term_id', 'nCount_RNA', 'nFeature_RNA', 'pMito', 'NODG', 'nUMI', 'Country', 'Annotation_Level1', 'Annotation_Level2', 'Annotation_Level3', 'Annotation_Level4', 'Smoking Status', 'cell_type', 'assay', 'disease', 'sex', 'tissue', 'self_reported_ethnicity', 'development_stage', 'observation_joinid'
    var: 'feature_is_filtered', 'feature_name', 'feature_reference', 'feature_biotype', 'feature_length', 'feature_type', 'Ensemble_ID'
    uns: 'citation', 'default_embedding', 'organism', 'organism_ontology_term_id', 'schema_reference', 'schema_version', 'title'
    obsm: 'X_umap'
    layers: 'raw'

[25]:

adata.obs.head().T

[25]:
index AAACCTGAGAACAATC-1-IN_NIB_B001_L001 AAACCTGAGAAGCCCA-1-IN_NIB_B001_L001 AAACCTGAGCAAATCA-1-IN_NIB_B001_L001 AAACCTGAGCTAGCCC-1-IN_NIB_B001_L001 AAACCTGAGTGTACCT-1-IN_NIB_B001_L001
reference_genome GRCh38 GRCh38 GRCh38 GRCh38 GRCh38
gene_annotation_version v98 v98 v98 v98 v98
alignment_software Cell Ranger count v7.0.1 Cell Ranger count v7.0.1 Cell Ranger count v7.0.1 Cell Ranger count v7.0.1 Cell Ranger count v7.0.1
intronic_reads_counted yes yes yes yes yes
library_id c18f20cd-6317-4059-bc5a-5341fe134124 c18f20cd-6317-4059-bc5a-5341fe134124 c18f20cd-6317-4059-bc5a-5341fe134124 c18f20cd-6317-4059-bc5a-5341fe134124 c18f20cd-6317-4059-bc5a-5341fe134124
assay_ontology_term_id EFO:0009900 EFO:0009900 EFO:0009900 EFO:0009900 EFO:0009900
sequenced_fragment 5 prime tag 5 prime tag 5 prime tag 5 prime tag 5 prime tag
cell_number_loaded 40000 cells 40000 cells 40000 cells 40000 cells 40000 cells
institute National Institute of Biomedical Genetics National Institute of Biomedical Genetics National Institute of Biomedical Genetics National Institute of Biomedical Genetics National Institute of Biomedical Genetics
is_primary_data True True True True True
cell_type_ontology_term_id CL:0000084 CL:0000084 CL:0000084 CL:0000763 CL:0000084
author_cell_type T_unknown T_unknown T_unknown Myeloid_unknown T_unknown
sample_id 737b4d87-a88d-4425-8c76-41ec721b42ca 69809569-be81-49f0-bc1f-0904e410de0d 5bf5934a-d137-476a-a0b0-d317fa774291 356a6078-60cb-40c5-88e8-e0632ba8ea92 796fdcb9-0d62-499a-9132-70a51f39d465
sample_preservation_method other other other other other
tissue_ontology_term_id UBERON:0000178 UBERON:0000178 UBERON:0000178 UBERON:0000178 UBERON:0000178
development_stage_ontology_term_id HsapDv:0000116 HsapDv:0000125 HsapDv:0000119 HsapDv:0000116 HsapDv:0000118
sample_collection_method blood draw blood draw blood draw blood draw blood draw
donor_BMI_at_collection 26.1 33.2 22.2 23.7 22.9
tissue_type tissue tissue tissue tissue tissue
suspension_derivation_process density gradient centrifugation density gradient centrifugation density gradient centrifugation density gradient centrifugation density gradient centrifugation
suspension_enriched_cell_types peripheral blood mononuclear cell peripheral blood mononuclear cell peripheral blood mononuclear cell peripheral blood mononuclear cell peripheral blood mononuclear cell
cell_viability_percentage 98.0 97.5 99.0 95.3 97.8
suspension_uuid 9399b949-af6a-4766-8d8a-75022bfdbbd4 f54130cc-3610-444a-99e9-186271a937cc 4e83d0bf-e4a9-4f94-8ab6-91cde22c71a2 52e71bbf-9ed8-4ab6-9537-d11eb1c1e77f 9c4f48d5-b74e-400b-9945-b0d5187a0cad
suspension_type cell cell cell cell cell
donor_id IN_NIB_H031 IN_NIB_H028 IN_NIB_H019 IN_NIB_H033 IN_NIB_H026
self_reported_ethnicity_ontology_term_id HANCESTRO:0487 HANCESTRO:0487 HANCESTRO:0487 HANCESTRO:0487 HANCESTRO:0487
donor_living_at_sample_collection True True True True True
disease_ontology_term_id PATO:0000461 PATO:0000461 PATO:0000461 PATO:0000461 PATO:0000461
sex_ontology_term_id PATO:0000384 PATO:0000384 PATO:0000383 PATO:0000384 PATO:0000383
nCount_RNA 4235.0 3153.0 3642.0 2229.0 3125.0
nFeature_RNA 1571 1596 1454 1314 1368
pMito 0.020543 0.021884 0.032125 0.026918 0.01376
NODG 1571 1596 1454 1314 1368
nUMI 4235 3153 3642 2229 3125
Country IN IN IN IN IN
Annotation_Level1 T T T Myeloid T
Annotation_Level2 T T T Myeloid T
Annotation_Level3 T T T Myeloid T
Annotation_Level4 T_unknown T_unknown T_unknown Myeloid_unknown T_unknown
Smoking Status 1 0 0 0 0
cell_type T cell T cell T cell myeloid cell T cell
assay 10x 5' v2 10x 5' v2 10x 5' v2 10x 5' v2 10x 5' v2
disease normal normal normal normal normal
sex male male female male female
tissue blood blood blood blood blood
self_reported_ethnicity Indian Indian Indian Indian Indian
development_stage 22-year-old stage 31-year-old stage 25-year-old stage 22-year-old stage 24-year-old stage
observation_joinid L#&-yLt?V) TiEL`2U3~o 534@tl7g>n ZR3T+u}`$6 k}Z5EqiqDM

Import PIASO#

[27]:

import piaso

/n/data1/hms/neurobio/fishell/mindai/.conda/envs/scda5/lib/python3.10/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

[28]:

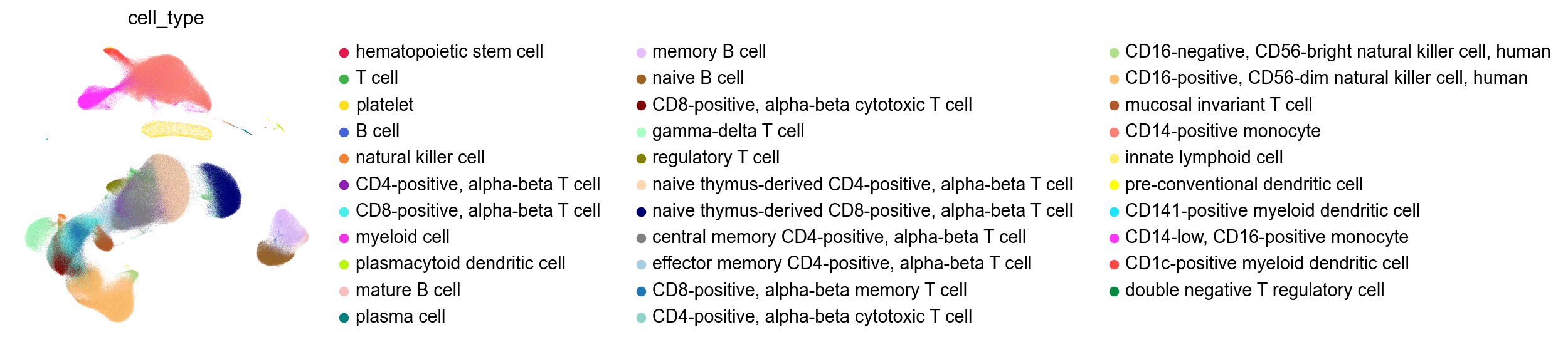

sc.pl.umap(adata,
           color=['cell_type'],
           palette=piaso.pl.color.d_color4,
           cmap=piaso.pl.color.c_color4,
           # size=10,
           ncols=1,
           frameon=False)
../_images/notebooks_1millionCells_AsianImmuneDiversityAtlasPhase1v2_28_0.png
[29]:

sc.pl.umap(adata,
           color=['Annotation_Level4'],
           palette=piaso.pl.color.d_color4,
           cmap=piaso.pl.color.c_color4,
           # size=10,
           ncols=1,
           frameon=False)
../_images/notebooks_1millionCells_AsianImmuneDiversityAtlasPhase1v2_29_0.png
[30]:

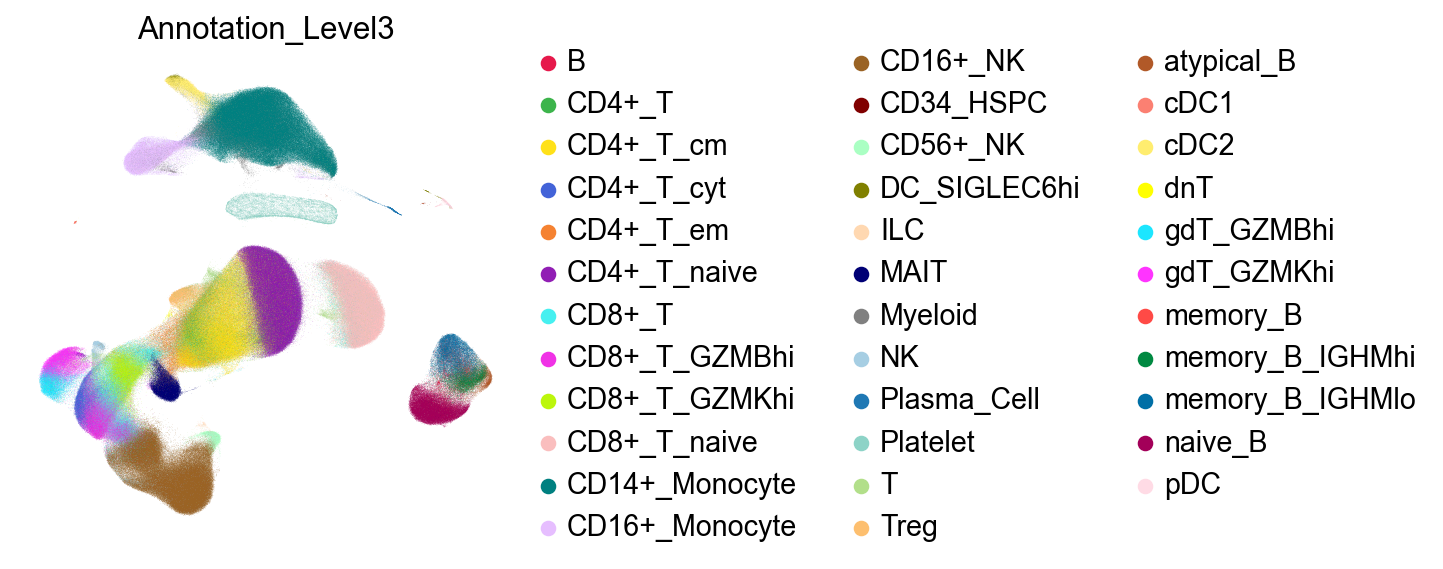

sc.pl.umap(adata,
           color=['Annotation_Level3'],
           palette=piaso.pl.color.d_color4,
           cmap=piaso.pl.color.c_color4,
           # size=10,
           ncols=1,
           frameon=False)
../_images/notebooks_1millionCells_AsianImmuneDiversityAtlasPhase1v2_30_0.png

Run INFOG#

[36]:

%%time
piaso.tl.infog(adata,
               layer='raw',
               n_top_genes=3000,)

The normalized data is saved as `infog` in `adata.layers`.
The highly variable genes are saved as `highly_variable` in `adata.var`.
Finished INFOG normalization.
CPU times: user 3min 37s, sys: 2min 21s, total: 5min 58s
Wall time: 5min 59s

[37]:

piaso.pp.table(adata.obs['cell_type'])

[37]:

{'T cell': 54800,
 'myeloid cell': 26020,
 'natural killer cell': 23234,
 'B cell': 9144,
 'platelet': 14799,
 'plasma cell': 1672,
 'naive B cell': 36778,
 'memory B cell': 35114,
 'mature B cell': 4850,
 'hematopoietic stem cell': 135,
 'CD14-positive monocyte': 202124,
 'CD14-low, CD16-positive monocyte': 46628,
 'CD1c-positive myeloid dendritic cell': 13207,
 'CD141-positive myeloid dendritic cell': 554,
 'pre-conventional dendritic cell': 894,
 'plasmacytoid dendritic cell': 3796,
 'CD16-positive, CD56-dim natural killer cell, human': 151655,
 'CD8-positive, alpha-beta cytotoxic T cell': 46528,
 'CD8-positive, alpha-beta T cell': 53658,
 'CD16-negative, CD56-bright natural killer cell, human': 6152,
 'CD4-positive, alpha-beta cytotoxic T cell': 13594,
 'gamma-delta T cell': 30695,
 'CD8-positive, alpha-beta memory T cell': 28138,
 'CD4-positive, alpha-beta T cell': 40100,
 'innate lymphoid cell': 707,
 'naive thymus-derived CD8-positive, alpha-beta T cell': 89029,
 'mucosal invariant T cell': 23001,
 'naive thymus-derived CD4-positive, alpha-beta T cell': 157616,
 'central memory CD4-positive, alpha-beta T cell': 110004,
 'effector memory CD4-positive, alpha-beta T cell': 25012,
 'regulatory T cell': 15497,
 'double negative T regulatory cell': 489}

[38]:

piaso.pp.table(adata.obs['tissue'])

[38]:

{'blood': 1265624}

[39]:

piaso.pp.table(adata.obs['disease'])

[39]:

{'normal': 1265624}

[40]:

piaso.pp.table(adata.obs['assay'])

[40]:

{"10x 5' v2": 1265624}

[41]:

piaso.pp.table(adata.obs['library_id'])

[41]:

{'c18f20cd-6317-4059-bc5a-5341fe134124': 8341,
 '8c929df1-d96a-437e-94cf-795ba97ba226': 11777,
 'a539496c-999e-4935-865e-2c1c7506bbc9': 13902,
 '91f42a59-eeb0-4577-a6d0-52f17b4ea3b3': 12056,
 '25e6ef7a-298c-42d5-9be8-b09932e1fd9d': 12235,
 '10a42edf-8fd3-4e25-900c-5a8e4890bcc8': 16351,
 '3caa9824-a0cb-4d3c-a642-b2f374f690b5': 12486,
 'a6c4ebc3-beac-4ebe-8e27-85afbe0d55b2': 18336,
 '5205817f-44c5-468b-9d41-043ecacb7dbb': 17684,
 '163573e7-c093-4a02-8ce4-b38e61d4d78e': 15374,
 '1833343d-c74b-409a-a2ad-15bdfaddf876': 16129,
 'db0a8252-6f37-47d4-98d6-806b181c1520': 17231,
 '745201e8-508b-4484-b179-6a3dc332895a': 16823,
 '8eb9096b-f4be-4fbf-91a3-402621f6d7d2': 17066,
 '688adb38-2ca3-4efa-8183-a1130f6c7801': 18609,
 '354ba71c-599c-4cd0-8f31-07d7b5676ded': 16138,
 'fef1f5a0-b108-435e-a754-3cc995daaa1f': 15994,
 '7b848d92-f5d1-4b53-a681-889c581d5ec9': 17178,
 'd43d2448-bf59-4267-a458-1ceb83096c67': 17712,
 'bb48421f-5cb1-4f12-b725-dcfa41bc700b': 10244,
 '7da3c8a8-dfcf-4d98-bcdb-63281d8903f9': 12889,
 '1d7edd49-e8ab-494d-8d33-f452f138e945': 16113,
 '0ebbd2ac-4260-4342-af3b-ff24012e8681': 17663,
 '091b1af8-3dc5-494f-a485-4b647c9f2bfa': 17975,
 '57aa8942-f88d-4b83-9888-f6f5917a84a9': 17443,
 'acc5bec2-dd3f-44c3-bc54-6746e0295f2f': 18117,
 'fab2de88-119e-40ea-b5c1-e7b616c8483d': 16994,
 'f75482e2-85c9-414b-a2d3-fd6505fc3e0b': 18836,
 '5491dd9a-e8f1-4788-8495-3deaf7b3fa4d': 18710,
 '95b09160-b9c3-4035-8263-205a4a11e118': 19176,
 '537d845f-42e1-4498-b827-737cf9fd3df6': 17666,
 'dc6ba966-a025-4222-a671-ffb5519a0a24': 17200,
 '5b6184ee-60b3-4f4e-ad21-c8424f7a4a8b': 19120,
 '0b8994d6-7ead-4d27-913b-69cab52df357': 18837,
 '0b1175aa-350d-4e0a-8535-d667980cb949': 19320,
 'f2b4f75b-4de2-4894-bdaa-3cbae7efc951': 17506,
 '60d897bb-bd81-4794-a1bd-f89200faa1c1': 17851,
 '25561afb-5a09-4eb7-aebb-be2dc52258c1': 16646,
 '62e4c041-4c8d-4b07-808d-e888b97ceab0': 16768,
 'c2b6c7fa-e925-4715-a0b8-cd02bd1d2469': 18281,
 '6a2dc1c5-9a2c-4490-b720-b39c49c26d5b': 18051,
 'ba7dd120-1236-43ec-ae73-1961577a71f0': 17757,
 'ba4b2831-5211-4c45-a814-467012f6c356': 15092,
 '2afec21c-9b5c-43e6-9bb2-cfb41181758c': 13693,
 'f7b36e3c-39e1-4aac-88ce-12f31ef4bf33': 15753,
 '925ed908-cb3d-4eeb-8db9-cf8967de971d': 19209,
 'c8ee9b8a-793e-4712-bc91-0c9cd291a698': 16323,
 '49dc02c4-bd12-4148-a760-d5631154a019': 12727,
 '735e1302-a6a2-49f2-9c7e-117a8706aab0': 12765,
 'e1c3cd5d-70b7-4eb1-8028-218da445dc3e': 8608,
 'ea8c3957-1abc-43b2-b412-93c104e8acbb': 9506,
 'daf47ff8-958c-4aa1-b50e-acb15f88279c': 10040,
 'c818b1d0-12f3-4768-b395-daaf8f5fd70b': 10822,
 '40c0cad6-88ca-4e19-9ead-6f48dfca8823': 9890,
 '902e88a3-8007-4ea4-9520-299190672fdf': 9783,
 'b9119f90-58cd-42ae-83f6-2f7f82827972': 9667,
 '215f5ef8-70d9-4efd-8564-60b05a1a1a52': 8531,
 '3eba0346-ae6a-4a8b-9a33-d637004f4352': 11012,
 'e689732d-7e84-4467-ab20-b85678d81dd9': 8919,
 'bc3f63cf-404c-4f5c-8e9b-15f00d830d84': 8890,
 '155f18d1-1754-4353-ba9d-7107adc68223': 8191,
 '2361585a-ad3d-4236-af8e-e3188a71fa26': 8496,
 '87bba90e-4389-405c-adec-ca27e2c94219': 8947,
 '74224522-53fc-4a99-aff4-091f642f9c90': 7275,
 'ad6e9dda-40b1-4ae8-9b29-2a64ddb8ab9f': 8913,
 '5397ecce-4f99-4f7c-b833-000c8d57cdb1': 6823,
 'c0eb5cbc-7a22-4e4a-bc48-f15219ea2d0e': 6030,
 '91f8d6ee-8ed5-40c8-9597-f0d87a9f9922': 6991,
 'df470eeb-1e73-482a-a850-aa90c736f4cd': 7681,
 'ff9b156b-5ca7-4c1f-9a2d-32cc7d729713': 8369,
 '53539254-c074-4fc6-b902-ce2a795057ef': 9168,
 'bd5eaeae-ee8b-44c3-93d6-e639160df738': 9549,
 '9c9d26f4-487c-46b2-98c2-51c17f1972e5': 9416,
 'e6e2a3ba-84af-43b7-b913-0ad174393cae': 8900,
 '89156b35-22e6-42db-80ed-72ed15b9cffc': 7865,
 '38f769ce-583e-4e9b-9434-2042d3649f6e': 8805,
 'f22affcb-67e9-458e-81e8-4f7c6fc2bcf1': 8144,
 'de842ea6-cb26-47c3-8957-5e58c178c2a1': 7763,
 '57a6d9c9-ec4a-4591-b341-b50a4f99f8a3': 9188,
 '9cded2d7-90ec-4dcb-bb64-6e46ff06323a': 13011,
 'ed813075-c243-46c8-bcc9-bd2f855dd332': 9522,
 '82dcae80-03e7-4bbb-befc-67ac9b3c4aef': 8991,
 '39e88fce-97eb-4e7f-977e-68d23176c372': 9954,
 '5cfc2c07-b9c5-42bf-8307-cfb51e677c3e': 16719,
 '78bf1fed-bf59-4a2e-a791-f7bb5737ad56': 13120,
 'dbb06e58-a137-4a92-bbaa-053a936de27c': 17390,
 'bc30a108-b78f-4157-93e2-90b661a3d639': 20564,
 '2cd6ef50-de2b-450e-8c43-db151315302b': 15427,
 '3dfdc900-2c20-45fe-80a7-8d821f362ee5': 17156,
 '72c440dc-7d5c-494b-8240-6bd4fd260ea0': 16492,
 'ac74f903-c5cb-42cc-a2c4-6241904081c3': 16071,
 '3961d088-d775-4784-ab8e-e892d1f70166': 16566,
 '9f3fb493-13bd-4e80-9cd2-83948a26e01d': 16312}

[42]:

adata.X.data

[42]:

array([1.21232039, 1.21232039, 1.21232039, ..., 2.99794589, 1.82356588,
       3.96914141], shape=(2544339517,))

Run GDR#

[43]:

%%time
piaso.tl.runGDRParallel(adata,
                        batch_key='library_id',
                        groupby=None,
                        n_gene=20,
                        mu=10,
                        resolution=3.0,
                        layer='infog',
                        infog_layer='raw',
                        score_layer='infog',
                        scoring_method='piaso',
                        use_highly_variable=True,
                        n_highly_variable_genes=5000,
                        n_svd_dims=50,
                        key_added='X_gdr',
                        max_workers=32,
                        calculate_score_multiBatch = False,
                        verbosity=0)

Calculating marker genes: 100%|██████████| 93/93 [11:38<00:00,  7.51s/batch]
Calculating cell embeddings: 100%|██████████| 93/93 [21:13:01<00:00, 821.31s/batch]

The cell embeddings calculated by GDR were saved as `X_gdr` in adata.obsm.
CPU times: user 14min 15s, sys: 5min 11s, total: 19min 27s
Wall time: 21h 26min 6s

It took ~21.5 hours to run GDR on 1.2 million cells from 93 libraries.

[52]:

adata

[52]:

AnnData object with n_obs × n_vars = 1265624 × 35477
    obs: 'reference_genome', 'gene_annotation_version', 'alignment_software', 'intronic_reads_counted', 'library_id', 'assay_ontology_term_id', 'sequenced_fragment', 'cell_number_loaded', 'institute', 'is_primary_data', 'cell_type_ontology_term_id', 'author_cell_type', 'sample_id', 'sample_preservation_method', 'tissue_ontology_term_id', 'development_stage_ontology_term_id', 'sample_collection_method', 'donor_BMI_at_collection', 'tissue_type', 'suspension_derivation_process', 'suspension_enriched_cell_types', 'cell_viability_percentage', 'suspension_uuid', 'suspension_type', 'donor_id', 'self_reported_ethnicity_ontology_term_id', 'donor_living_at_sample_collection', 'disease_ontology_term_id', 'sex_ontology_term_id', 'nCount_RNA', 'nFeature_RNA', 'pMito', 'NODG', 'nUMI', 'Country', 'Annotation_Level1', 'Annotation_Level2', 'Annotation_Level3', 'Annotation_Level4', 'Smoking Status', 'cell_type', 'assay', 'disease', 'sex', 'tissue', 'self_reported_ethnicity', 'development_stage', 'observation_joinid'
    var: 'feature_is_filtered', 'feature_name', 'feature_reference', 'feature_biotype', 'feature_length', 'feature_type', 'Ensemble_ID', 'infog_var', 'highly_variable'
    uns: 'Annotation_Level3_colors', 'Annotation_Level4_colors', 'cell_type_colors', 'citation', 'default_embedding', 'organism', 'organism_ontology_term_id', 'schema_reference', 'schema_version', 'title', 'gdr', 'neighbors', 'umap', 'assay_colors'
    obsm: 'X_umap', 'X_gdr', 'X_umap_author'
    layers: 'raw', 'infog'
    obsp: 'distances', 'connectivities'

[ ]:

adata.obsm['X_umap_author']=adata.obsm['X_umap'].copy()

[ ]:

%%time
sc.pp.neighbors(adata,
                use_rep='X_gdr',
                n_neighbors=15,
                random_state=10,
                knn=True,
                method="umap")
sc.tl.umap(adata)

computing neighbors
    finished: added
    'X_umap', UMAP coordinates (adata.obsm)
    'umap', UMAP parameters (adata.uns) (0:35:54)
CPU times: user 2h 22min, sys: 25min 7s, total: 2h 47min 8s
Wall time: 2h 31min 48s

[48]:

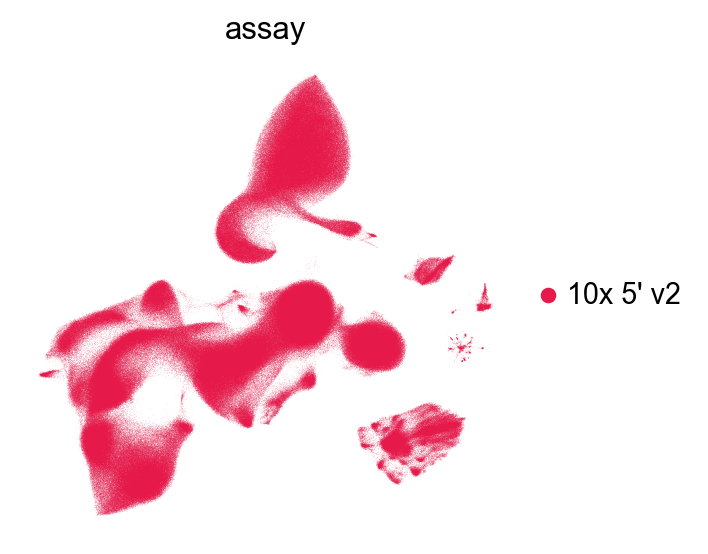

sc.pl.umap(adata,
           color=['assay'],
           palette=piaso.pl.color.d_color4,
           cmap=piaso.pl.color.c_color4,
           # size=10,
           ncols=1,
           frameon=False)
../_images/notebooks_1millionCells_AsianImmuneDiversityAtlasPhase1v2_45_0.png

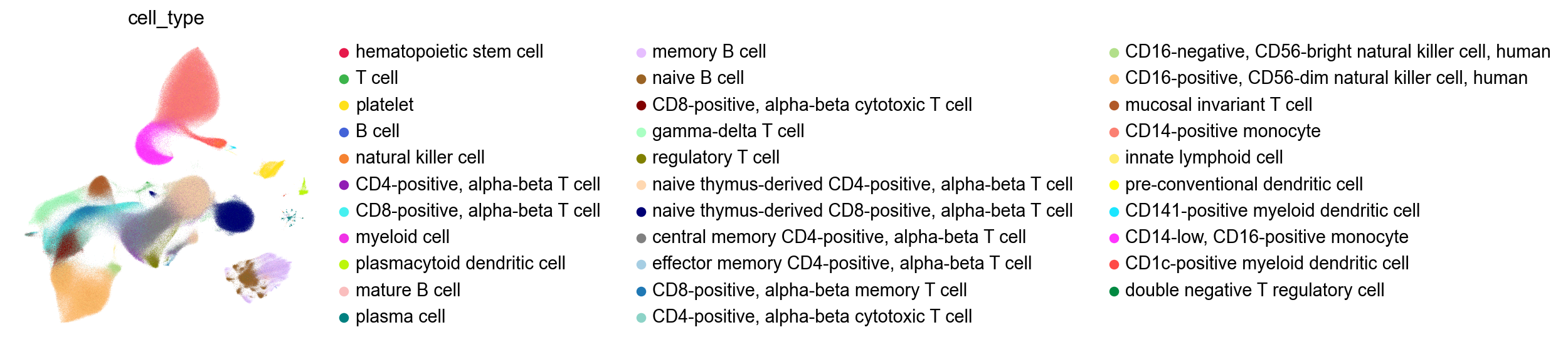

The UMAP from GDR:

[50]:

sc.pl.umap(adata,
           color=['cell_type'],
           palette=piaso.pl.color.d_color4,
           cmap=piaso.pl.color.c_color4,
           # size=10,
           ncols=1,
           frameon=False)
../_images/notebooks_1millionCells_AsianImmuneDiversityAtlasPhase1v2_47_0.png

Compared to the UMAP from the publication:

[61]:

sc.pl.embedding(adata,
           basis='X_umap_author',
           color=['cell_type'],
           palette=piaso.pl.color.d_color4,
           cmap=piaso.pl.color.c_color4,
           # size=10,
           ncols=1,
           frameon=False)
../_images/notebooks_1millionCells_AsianImmuneDiversityAtlasPhase1v2_49_0.png
[53]:

adata.obsm['X_umap_gdr']=adata.obsm['X_umap'].copy()

[54]:

adata

[54]:

AnnData object with n_obs × n_vars = 1265624 × 35477
    obs: 'reference_genome', 'gene_annotation_version', 'alignment_software', 'intronic_reads_counted', 'library_id', 'assay_ontology_term_id', 'sequenced_fragment', 'cell_number_loaded', 'institute', 'is_primary_data', 'cell_type_ontology_term_id', 'author_cell_type', 'sample_id', 'sample_preservation_method', 'tissue_ontology_term_id', 'development_stage_ontology_term_id', 'sample_collection_method', 'donor_BMI_at_collection', 'tissue_type', 'suspension_derivation_process', 'suspension_enriched_cell_types', 'cell_viability_percentage', 'suspension_uuid', 'suspension_type', 'donor_id', 'self_reported_ethnicity_ontology_term_id', 'donor_living_at_sample_collection', 'disease_ontology_term_id', 'sex_ontology_term_id', 'nCount_RNA', 'nFeature_RNA', 'pMito', 'NODG', 'nUMI', 'Country', 'Annotation_Level1', 'Annotation_Level2', 'Annotation_Level3', 'Annotation_Level4', 'Smoking Status', 'cell_type', 'assay', 'disease', 'sex', 'tissue', 'self_reported_ethnicity', 'development_stage', 'observation_joinid'
    var: 'feature_is_filtered', 'feature_name', 'feature_reference', 'feature_biotype', 'feature_length', 'feature_type', 'Ensemble_ID', 'infog_var', 'highly_variable'
    uns: 'Annotation_Level3_colors', 'Annotation_Level4_colors', 'cell_type_colors', 'citation', 'default_embedding', 'organism', 'organism_ontology_term_id', 'schema_reference', 'schema_version', 'title', 'gdr', 'neighbors', 'umap', 'assay_colors'
    obsm: 'X_umap', 'X_gdr', 'X_umap_author', 'X_umap_gdr'
    layers: 'raw', 'infog'
    obsp: 'distances', 'connectivities'

Save the data#

[55]:

adata.write(save_dir+'/'+prefix+'_gdr.h5ad')

[56]:

save_dir+'/'+prefix+'_gdr.h5ad'

[56]:

'/n/scratch/users/m/mid166/Result/single-cell/Methods/DataProcessing/AsianImmuneDiversityAtlasPhase1v2/AsianImmuneDiversityAtlasPhase1v2_gdr.h5ad'

The h5ad file with GDR embeddings could be downloaded from https://drive.google.com/file/d/1eXbUzpZxzbKHhEbhoiCM2MUgpuYCfgtE/view.
